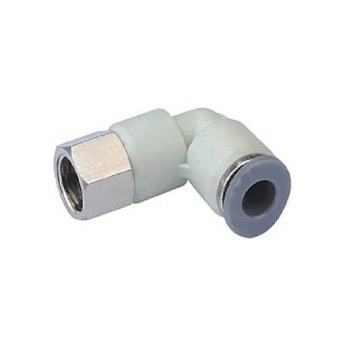

Plastic Female Elbow
SHARE
| Model | ΦD | R | A | E | X | Y | C |
|---|---|---|---|---|---|---|---|
| DPL4-M5 | 4 | M5 | 4 | 19.5 | 11.6 | 10.1 | 16 |
| DPL4-01 | 4 | R1/8 | 7.5 | ||||
| DPL4-02 | 4 | R1/4 | 9.5 | ||||
| DPL6-M5 | 6 | M5 | 4 | 20.5 | 14 | 12.5 | 17 |
| DPL6-01 | 6 | R1/8 | 7.5 | 12.5 | |||
| DPL6-02 | 6 | R1/4 | 9.5 | 12.5 | |||
| DPL6-03 | 6 | R3/8 | 10 | 12.5 | |||
| DPL6-04 | 6 | R1/2 | 13 | 12.5 | |||
| DPL8-01 | 8 | R1/8 | 7.5 | 21 | 16 | 14 | 18 |
| DPL8-02 | 8 | R1/4 | 9.5 | ||||
| DPL8-03 | 8 | R3/8 | 10 | ||||
| DPL8-04 | 8 | R1/2 | 13 | ||||
| DPL10-01 | 10 | R1/8 | 7.5 | 26 | 19 | 16.5 | 20.5 |
| DPL10-02 | 10 | R1/4 | 9.5 | ||||
| DPL10-03 | 10 | R3/8 | 10 | ||||
| DPL10-04 | 10 | R1/2 | 13 | ||||
| DPL12-02 | 12 | R1/4 | 9.5 | 27.5 | 21.5 | 18.5 | 22.5 |
| DPL12-03 | 12 | R3/8 | 10 | ||||
| DPL12-04 | 12 | R1/2 | 13.5 | ||||
| DPL16-03 | 16 | R3/8 | 10 | 32.5 | 27 | 24 | 24 |
| DPL16-04 | 16 | R1/2 | 13.5 | 32.5 | 27 | 24 | 24 |
